SAMPLE DESIGN OF FOUNDATION FOR A SELF STANDING TELECOMMUNICATION TOWER

Design of the foundation will be based on the,
  • Geotechnical parameters obtained by soil report at the location
  • Parameters given by the steel tower designer
  • Details on antenna sizes, etc.
  • Other parameters such as wind, etc.
  • Type of tower

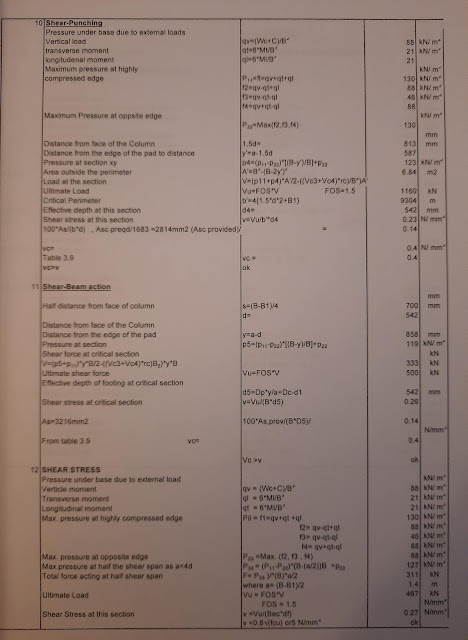

A sample design in shown below.
